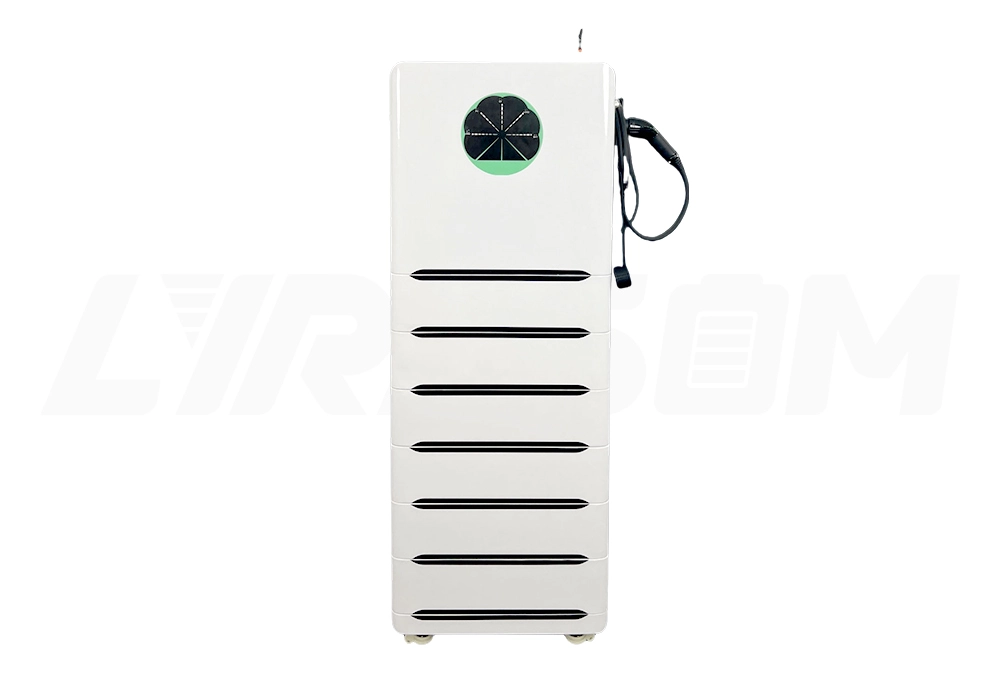

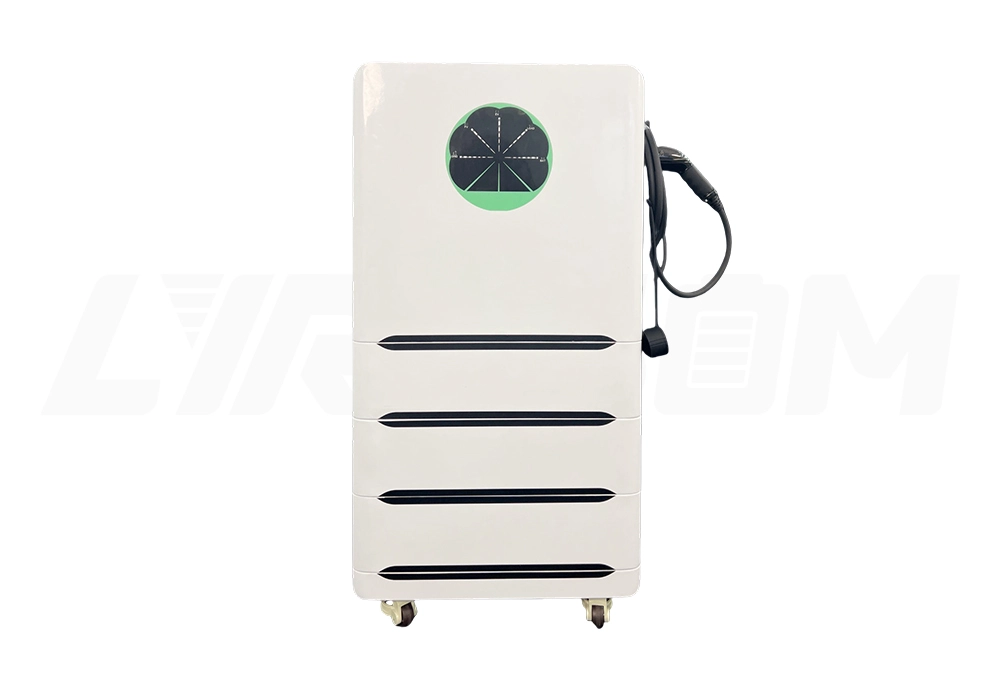

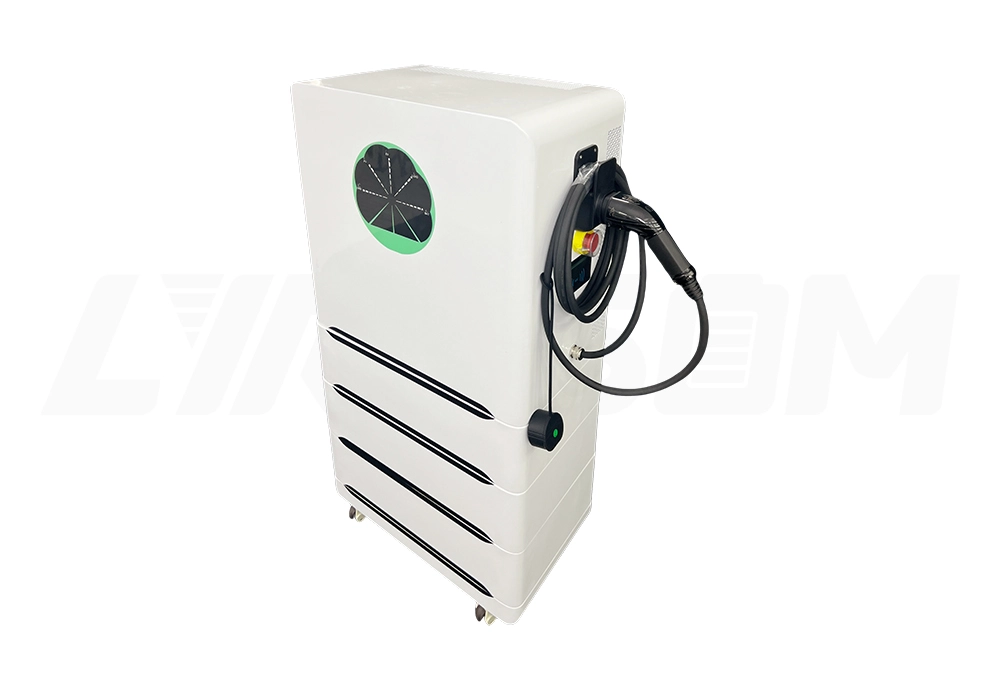

Name: Residential PV+ESS+Charger
Brand: Lyrasom

The system uses the LFP battery pack (10KWh-30KWh), with the advantages of high energy density and long cycle life. The cabinet adopts the stacking design and can be flexibly expanded.

It is equipped with customed battery management system (BMS), hybrid inverter and AC charging gun.

Easy to install and dispatch.

Suitable for family application scenarios like villas and houses etc.

Inquire Now

PDF Download

Specifications Of Residential PV+ESS+Charger

Battery PackTechnical Parameters (Single Box)
Connection type			1P16S
Rated capacity			100Ah
Rated energy			5.12kWh
Rated voltage			51.2V DC
Recommended charging voltage			56.8V or 3.55V/any cell
Internal resistance			≤60mΩ
Standard charge			50A
Standard discharge			50A
Discharge cut-off voltage			43.2V
Working temperature range			Charge:0~55℃ Discharge: -20~55℃
Storage temperature range			-20℃ ~50℃
Weight			50±3kg
尺寸 Size			600380400
Level of protection			IP65
Inverter Parameters
Inverter power			5000W
AC input voltage			220V/230V/240V（ 50Hz / 60Hz）
AC output voltage			220V/230V/240V（ 50Hz / 60Hz）
Photovoltaic Input Data
MPPT voltage range(V)			120～430
Number of MPPT			2
General Parameters
Number of stacking			1-6 (each battery module 5.12KWh)
Working temperature range (℃)			-20~55℃
Temperature control type			Natural cooling
Charging gun work mode			NFC/APP
Charging gun output power			7kw
Output over voltage protection			Integration
Photovoltaic input lightning protection			Integratoin
Storage temperature range			-20℃ ~50℃ (recommend storage temerature range≤90%RH)
Size (WDHmm)			6403801750
Weight			370kg (6-layers battery stack)
Level of protection			IP54
