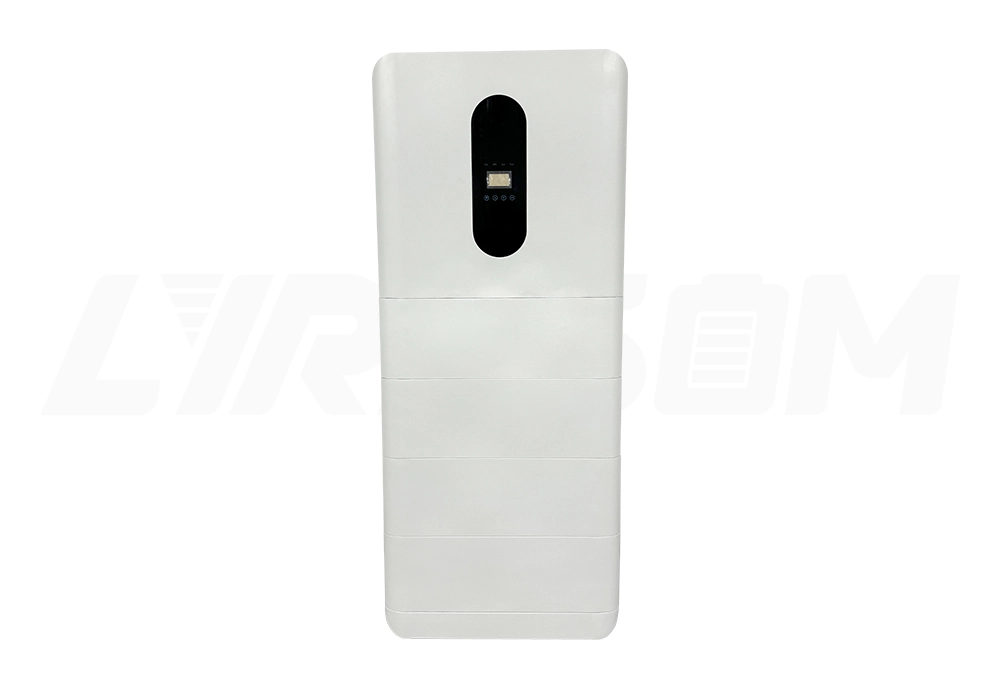

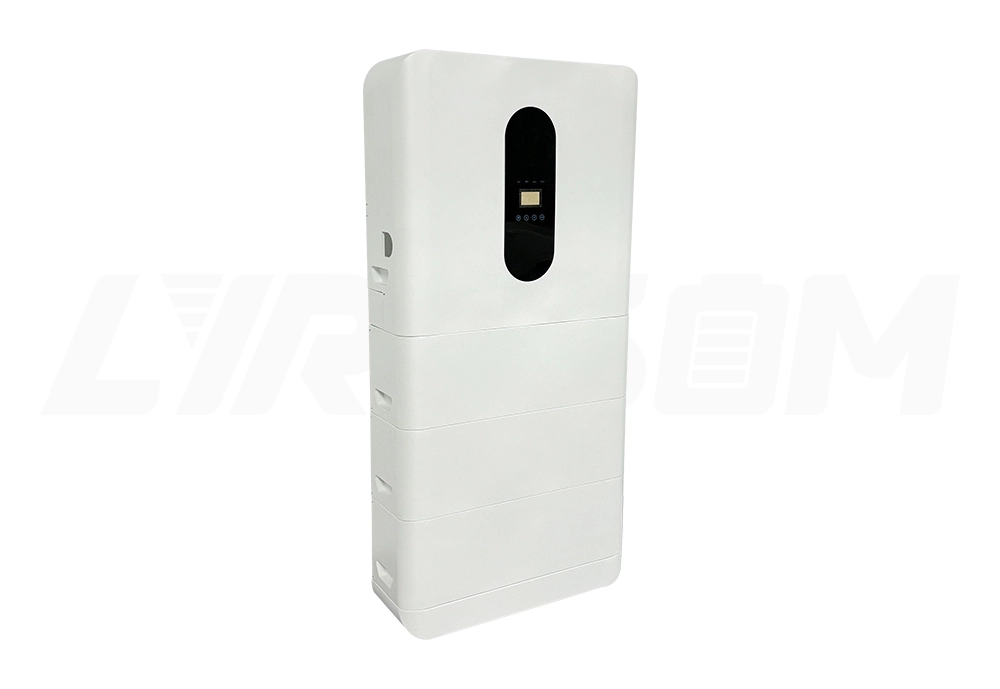

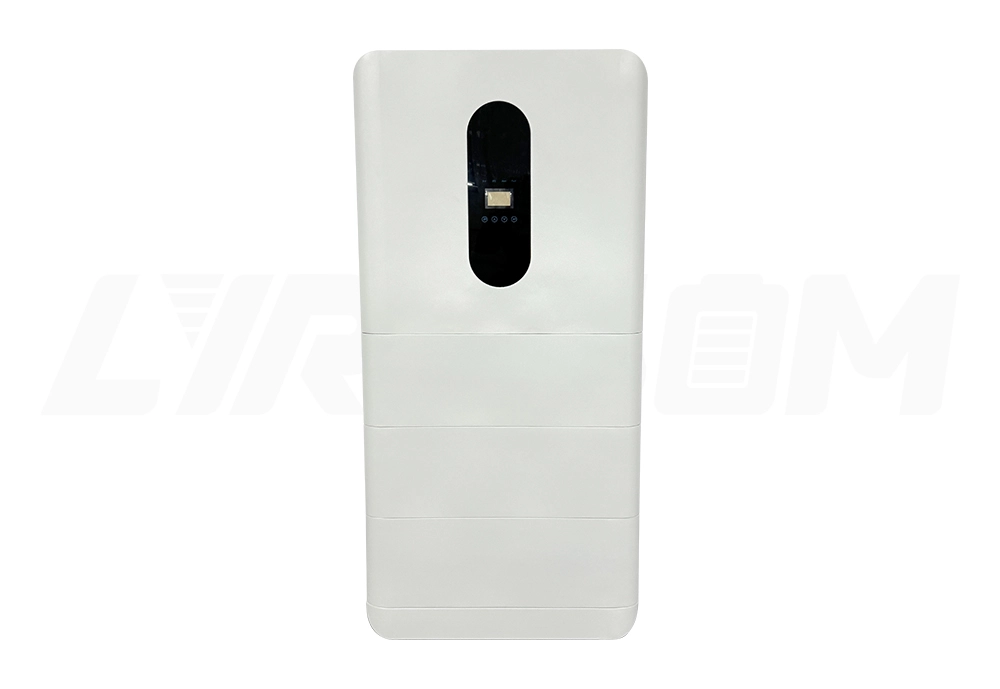

Name: High Voltage Stakable System
Brand: Lyrasom

Equipped with a three-phase high-voltage inverter, the 25KWh high-voltage all-in-one ESS is a safe, reliable and clean power supply system.

The built-in high-precision meter and CT prevent backflow and provide load power monitoring by Wifi, making the all-in-one more safe and reliable.

With the IP54 protection level, it can be installed indoors and outdoors. It supports seamless switching between off-grid and on-grid, and can be charged by PV or utility power.

Inquire Now

Specifications Of High Voltage Stakable System

Product Performance
Battery type	LFP
Nominal Battery Energy	10.24KWh	15.36KWh	20.48KWh	25.6KWh
Nominal Capacity	50Ah	50Ah	50Ah	50Ah
Nominal Voltage	204.8V	307.2V	409.6V	512.0V
Operating Voltage Range	182V-230V	273V-345V	364V-460.8V	456V-576V
Module Number	2	3	4	5
Standard Charging Current	26A @ 25°C
Max. Constant Charging Current	100A @ 25°C
Standard Discharging Current	26A @ 25°C
Max. Discharging Current	100A @ 25°C
Depth of Discharge(DOD)	90%
Design Life	6000 times @90%DOD , 25℃, 0.5C
Warranty	5 years
Protection	Over-temperature, over-charge, under-voltage, over-current, short circuit alarm Function
Communication	CAN/RS485
Inverter Specification
Power	8KW/10KW/12KW
Grid Voltage Range	380V/400V
Frequency	50-60Hz
AC Output Topology	3W+N+PE
MPPT Voltage Range	180-850V
Quantity of MPPT	2
General Specification
Dimensions (LWHmm)	750231806	7502311056	7502311306	7502311556
Weight (KG)	149KG	201KG	255KG	306KG
Shipping Status SOC	20%~30%
Charging Temperature	0~+50°C
Discharging Temperature	-20℃~+55℃
Storage Ambient Temperature	-20 ~+60°C
Max. Operating Altitude	4,000m(Derating above 2,000m)
Relative Humidity	5%-95%
Cooling	Air cooling
protection	IP54
Certification	UN38.3
